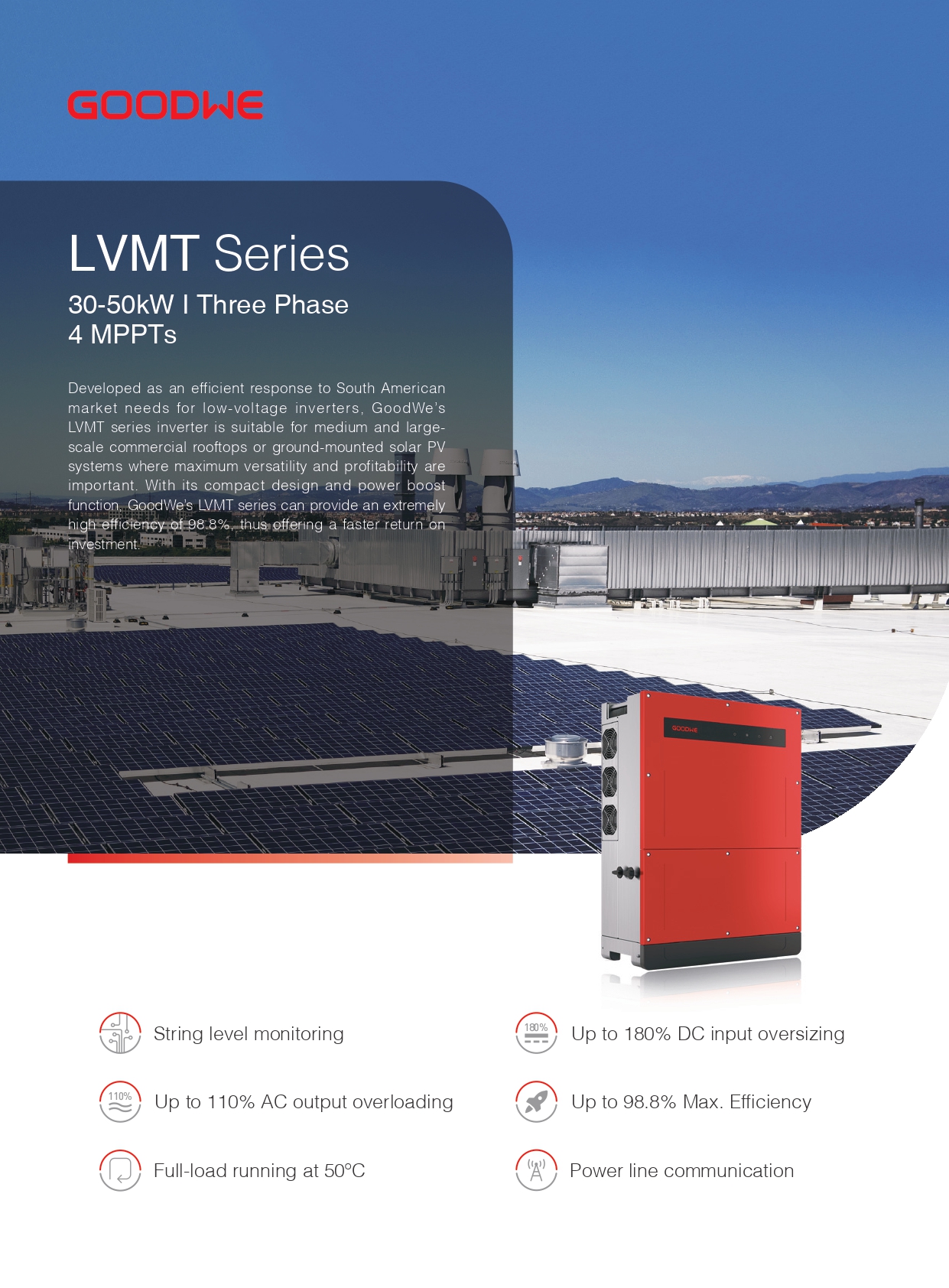

 LVMT Series |

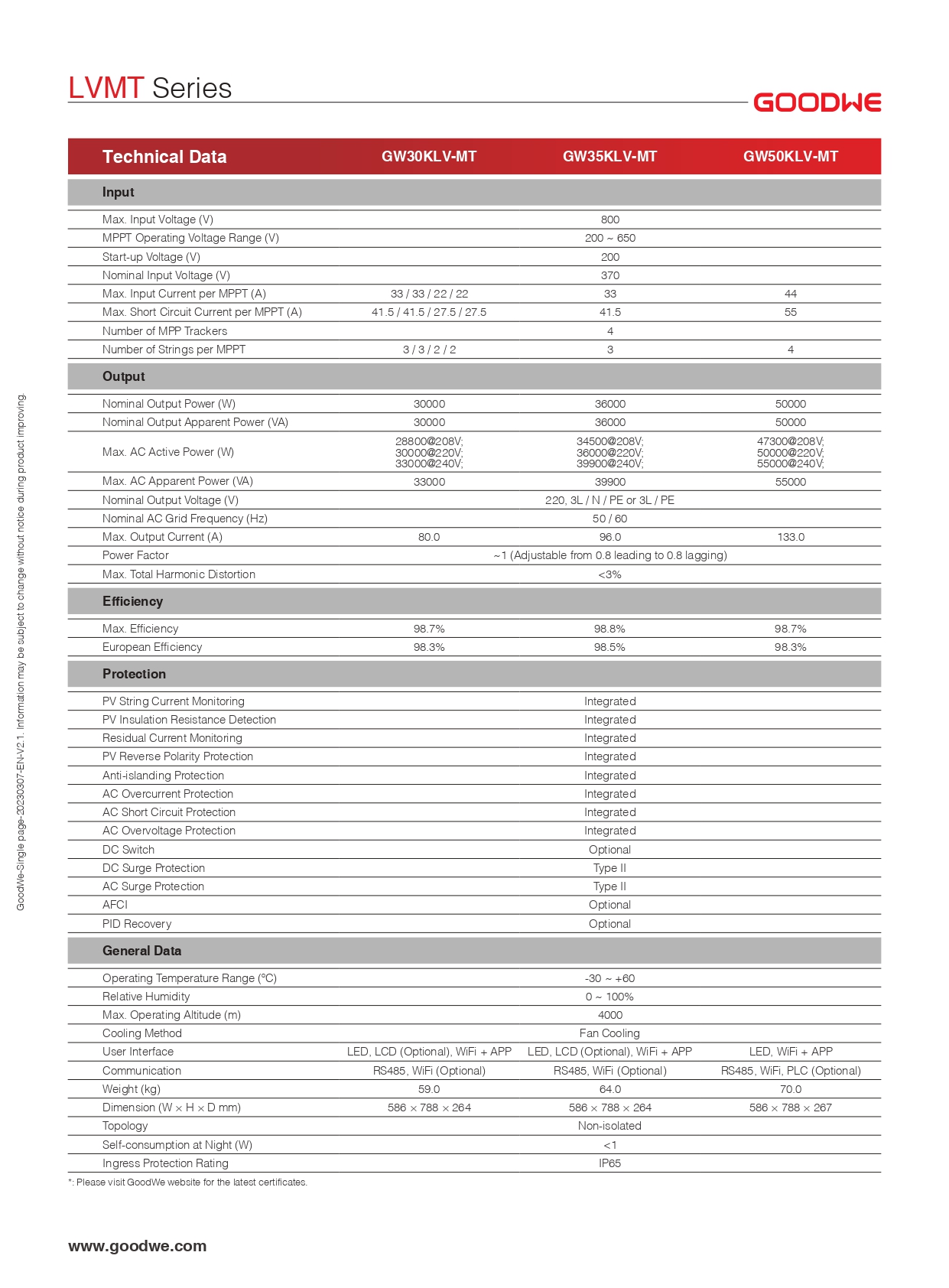

| Technical Data |
GW30KLV-MT |
GW35KLV-MT |
GW50KLV-MT |
| Input |
| Max. Input Voltage (V) |
800 |
| MPPT Operating Voltage Range (V) |
200 ~ 650 |
| Start-up Voltage (V) |
200 |
| Nominal Input Voltage (V) |
370 |
| Max. Input Current per MPPT (A) |
33 / 33 / 22 / 22 |
33 |
44 |
| Max. Short Circuit Current per MPPT (A) |
41.5 / 41.5 / 27.5 / 27.5 |
41.5 |
55 |
| Number of MPP Trackers |
4 |
| Number of Strings per MPPT |
3 / 3 / 2 / 2 |
3 |
4 |
| Output |
| Nominal Output Power (W) |
30000 |
36000 |
50000 |
| Nominal Output Apparent Power (VA) |
30000 |
36000 |
50000 |
| Max. AC Active Power (W) |
28800@208V;
30000@220V;
33000@240V; |
34500@208V;
36000@220V;
39900@240V; |
47300@208V;
50000@220V;
55000@240V; |
| Max. AC Apparent Power (VA) |
33000 |
39900 |
55000 |
| Nominal Output Voltage (V) |
220, 3L / N / PE or 3L / PE |
| Nominal AC Grid Frequency (Hz) |
50 / 60 |
| Max. Output Current (A) |
80.0 |
96.0 |
133.0 |
| Power Factor |
~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Max. Total Harmonic Distortion |
<3% |
| Efficiency |
| Max. Efficiency |
98.7% |
98.8% |
98.7% |
| European Efficiency |
98.3% |
98.5% |
98.3% |
| Protection |
| PV String Current Monitoring |
Integrated |
| PV Insulation Resistance Detection |
Integrated |
| Residual Current Monitoring |
Integrated |
| PV Reverse Polarity Protection |
Integrated |
| Anti-islanding Protection |
Integrated |
| AC Overcurrent Protection |
Integrated |
| AC Short Circuit Protection |
Integrated |
| AC Overvoltage Protection |
Integrated |
| DC Switch |
Optional |
| DC Surge Protection |
Type II |
| AC Surge Protection |
Type II |
| AFCI |
Optional |
| PID Recovery |
Optional |
| General Data |
| Operating Temperature Range (ºC) |
-30 ~ +60 |
| Relative Humidity |
0 ~ 100% |
| Max. Operating Altitude (m) |
4000 |
| Cooling Method |
Fan Cooling |
| User Interface |
LED, LCD (Optional), WiFi + APP |
LED, LCD (Optional), WiFi + APP |
LED, WiFi + APP |
| Communication |
RS485, WiFi (Optional) |
RS485, WiFi (Optional) |
RS485, WiFi, PLC (Optional) |
| Weight (kg) |
59.0 |
64.0 |
70.0 |
| Dimension (W × H × D mm) |
586 × 788 × 264 |
586 × 788 × 264 |
586 × 788 × 267 |
| Topology |
Non-isolated |
| Self-consumption at Night (W) |
<1 |
| Ingress Protection Rating |
IP65 |
