Longi Hi-Mo X6 Solar Panels LR5-72HTH 565-585M 565W 570W 575W 580W 585W HPBC Longi Solar Modules

Name: Longi HiMo X6 Solar Panels LR572HTH 565585M 565W 570W 575W 580W 585W HPBC Longi Solar Modules
Brand: Longi
Price: 0.14 USD

China Longi Hi-Mo X6 Solar Panels LR5-72HTH 565-585M 565W 570W 575W 580W 585W HPBC Longi Solar Modules factory

Brand Name : Longi

Place of Origin : China

MOQ : 1 PCS

Price : $0.14~$0.15

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 10000+peices/month

Delivery Time : 5-15 days

Packaging Details : carton pallet

Model Number : LR5-72HTH(565~585W)

Certification : TUV/CGC

Cell size : 182mmx182mm

Type : Half Cell, PERC, hbc, HPBC

Panel Efficiency : 22.6%

Warranty : 30years

Panel Dimensions : 2278*1134*35mm

Contact Now

Longi Hi-Mo X6 Solar Panels LR5-72HTH 565-585M 565W 570W 575W 580W 585W HPBC Longi Solar Modules

Features

LONGi new generation HPBC cell technology opens a new chapter in the mass production of high-efficiency cells

and continues to lead the reform of the industry.The efficiency of LONGi HPBC cells exceeds 25.5%.

The efficiency of HPBC+ cells exceeds 25.8%.

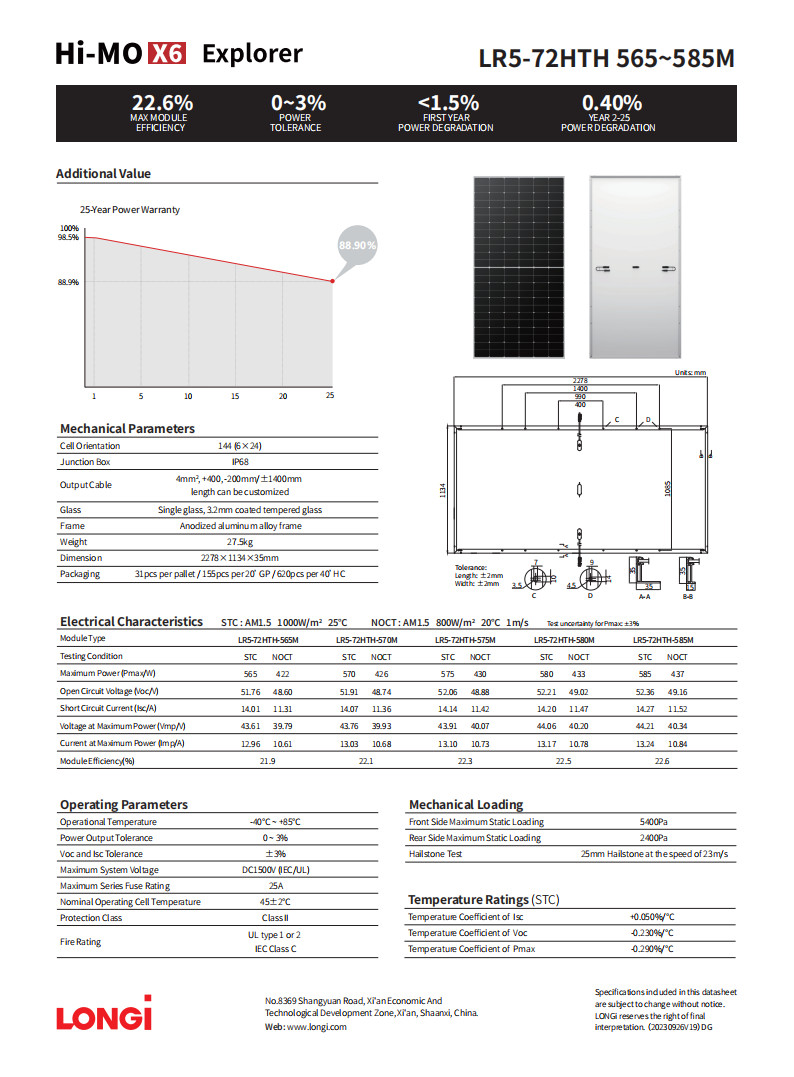

Electrical Characteristics	STC:AM1.51000W/m² 25℃			NOCT:AM1.5		800W/m²20℃ 1m/s			Test uncertinty for Pmac ±3%
Module Type	LR5-72HTH-565M		LR5-72HTH-570M			LR5-72HTH-575M		LR5-72HTH-580M				LR5-72HTH-585M
Testing Condition	STC	NOCT	STC	NOCT		STC	NOCT		STC	NOCT		STC	NOCT
Maximum Power (Pma/W)	565	422	570	426		575	430		580	433		585	437
Open Circuit Woltage (VocM)	5176	4860	5191	48.74		52.06	48.88		5221	49.02		5236	49.16
Short Circuit Current (sc/A)	1401	1131	1407	11.36		14.14	11.42		14.20	11.47		1427	1152
Voltage at Macimum Power (MmpM)	4361	39.79	4376	39.93		43.91	40.07		44.06	40.20		4421	4034
Cunentat Maximum Power (mp/A)	1296	1061	1303	10.68		13.10	10.73		13.17	10.78		1324 1084
Module Effideng/)	21.9		22.1			223			225			226

Operating Parameters					Mechanical Loading Front SideMaximum Staticloading					5400Pa
Operational Temperature	-40℃-+85℃				Rear Side Maxim um Static Loading					2400Pa
Power Output Tolerance	0-3%				Hailstone Test					25mm Hailstone at the speed of23m/s
Voc and kc Tolerance	±3%
Maximum System Voltage	DC1500V(IEC/UL)
Maximum Series Fuse Rating	25A				Temperature Ratings (STC)
Nominal OperatingCell Temperature	45±2℃				TemperatureCoefficient of kc						+0.050%/℃
Protection Class	Classll				Temperature Coefficient of Voc						0.230%/℃
FireRating	ULtypelor2				TemperatureCoefficient of Pmax						0.290%/℃
	IECdassC

Longi Hi-Mo X6 Solar Panels LR5-72HTH 565-585M 565W 570W 575W 580W 585W HPBC Longi Solar Modules

Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,

product supply, project construction andother PV services.

More than 12 years experience in solar power generation system.
Completed dozens of photovoltaic projects in China
Photovoltaic product supply,design,construction in global business
Project design of solar power generation system.
The product series includes solar panels, inverters,batteries, mounting brackets.
Project design of solar power generation system.
Provide one-stop photovoltaic solution.

Good after-sales service
